ecos M24. The refrigeration system that finally demands Zero from you.
50%
Lighter than next best in class
+15%
More payload capacity
GW<3
Natural Refrigerant R290
0
Mandatory service stops

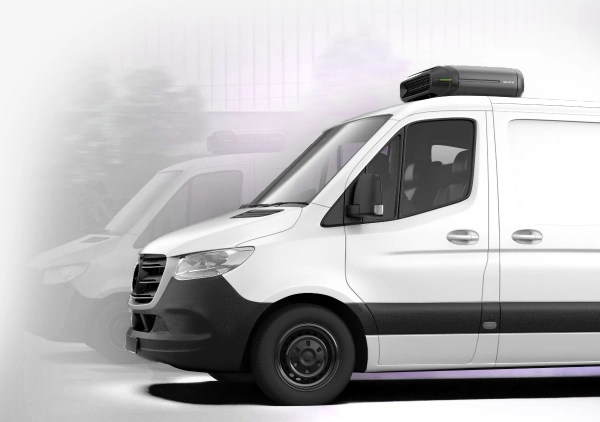

What the cooling unit doesn't weigh rides as payload.
At 40.5 kg, the ecos M24 is approximately 50% lighter than conventional refrigeration units. Every kilogram saved is payload gained — and every kilowatt-hour not lost to inefficient refrigeration is range. 1,350W cooling capacity at less than 7% of the traction battery. In practice: up to +15% more payload and up to +25% more range. Same route, same driver, same vehicle.
F-gases want something from you. Natural Refrigerants don't.
Fluorinated refrigerants — R452A, R454A, R513A — all contain PFAS. Choosing between HFCs and HFOs doesn’t solve the problem, it merely defers it. Propane has a GWP of 3. No F-gas. No PFAS. No pricing risk from regulatory supply constraints. Future-proof beyond 2050.

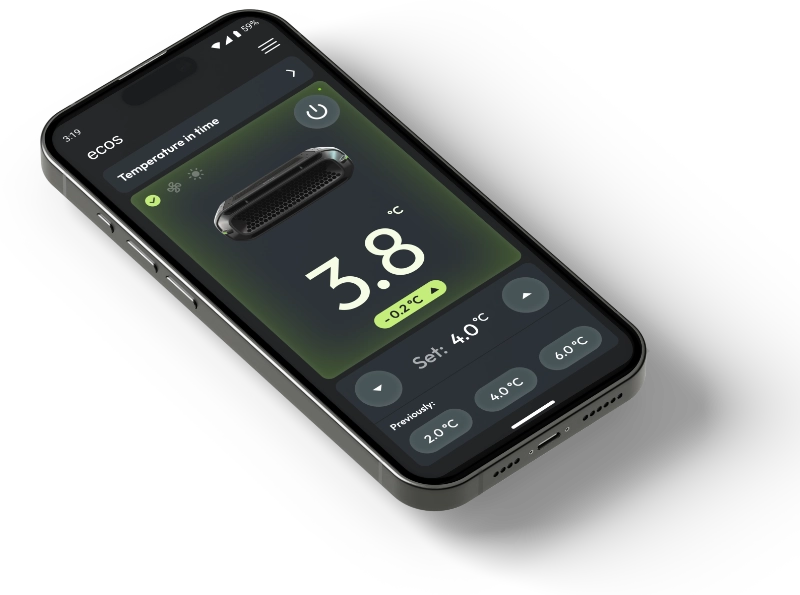

50+ data points. Always on. To optimize your operation.
50+ sensors continuously monitor the system, delivering real-time data streams for AI-enhanced logistics – including route optimization, predictive dispatching and automated ESG reporting. Temperature, energy consumption, operating patterns, stop durations – all captured, all actionable. The refrigeration system becomes an active participant in fleet intelligence, not just a passive component keeping things cold.
Refrigerant servicing? Strike it from your maintenance plan.
The ecos M24 is built around a fully hermetically sealed refrigeration circuit. Factory-charged, hermetically sealed, ready to operate — without a single mandatory service stop.
- Zero filter dryer replacements
- Zero annual leak checks
- Zero downtime for inspection
- Zero certified technician required
- Zero refrigerant logbook
- Zero 5-year record-keeping obligation.
- Zero F-gas headaches
Take your time to study the usual refrigeration service hassle in detail – and find out what you can strike off your list.
The future of transport refrigeration is climate-friendly, cost-effective, and intelligent. How about you?
← Scroll to compare →
| Standard | ecos M24 | |
|---|---|---|
| Refrigerant | F-Gases · high GWP · PFAS | R290 · GWP 3 · F-Gas-free · PFAS-free |
| Weight | >69 kg (incl. refrigerant & accessories) | 40.5 kg |
| Refrigeration Circuit | Assembled on-site · increased risk of contamination and leakage | Hermetically sealed · factory-filled · factory-tested |
| Installation Time | >32 hours incl. soldering, testing, charging | <4 hours · Plug & Run |
| Refrigeration Engineer | Required · certified specialist mandatory | Not required |
| Maintenance | Annual inspection mandatory · biannual service recommended | Maintenance-free |
| Downtime in Repair | Several hours to days · complex circuit repair | Module swap in <60 minutes |
| Data & Monitoring | Limited availability of real-time data | 50+ real-time data points · AI-enhanced logistics |
| Compatibility | Primarily designed for diesel vehicles | Designed for electric LCVs · fully compatible with diesel |
| Environmental Impact | 92t CO₂ emissions over lifetime · synthetic refrigerant | 93% fewer emissions · natural refrigerant |
| Compliance | F-Gas phase-out until 2032 · PFAS ban expected | Future-proof beyond 2050 · no regulatory risk |

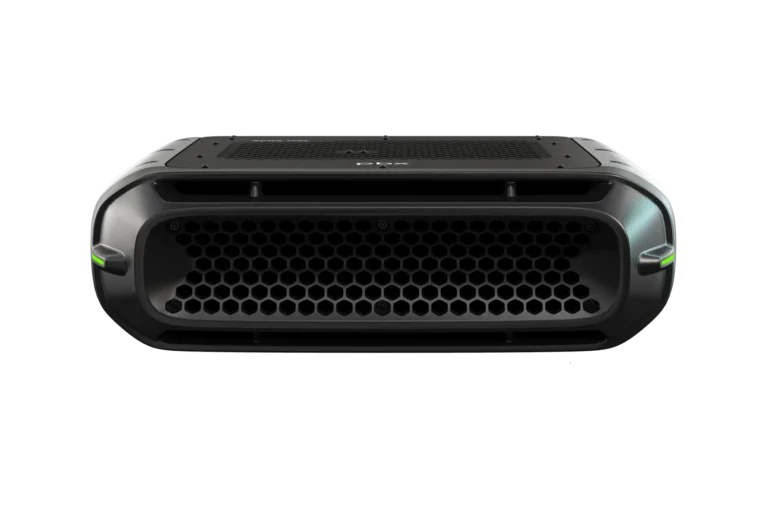

Weight: 30 kg
Dimensions: 781 × 870 × 265 mm
Cooling Capacity (ATP): 1,350 W (at 0°C cargo box, 30°C ambient temperature)
Heating Capacity: 1,070 W
Airflow nominal: 860 m³/h
Airflow high speed: up to 1,600 m³/h”
Weight: 10.5 kg
Dimensions: 762 × 726 × 209 mm
Supply Voltage: 28 VDC (min 20 VDC, max 30 VDC)*
Rated electrical power (cooling): 1,150 W / City route, 5 stops/h: <7% of the traction battery capacity
Recommended box for fresh goods (K=0.7): <10 m³
Recommended box for fresh goods (K=0.4): <14 m³
*Supply voltage conversion packages available as option
✓ Directive on Machinery 2006/42/EG
✓ Pressure Equipment Directive 2014/68/EU
✓ Electromagnetic Compatibility Directive 2014/30/EU
✓ Electromagnetic Regulation UN/ECE R10
✓ EU F-Gas Regulation (EU) 2024/573
✓ Int. Carriage for Perishable Foodstuffs UNECE/ATP 2024
ecos M24 — Technical Datasheet
Every spec, every certification, every number you need to make the case internally.
